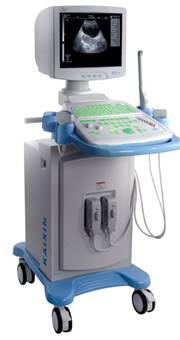

ECHOGRAPHE KX2805
Description : 1. Model Name: KX2805 full digital B mode ultrasound scanner.
2. Apply to abdomen, GYN, obstetric, small parts, etc.
3. 14’ SVGA display.
4. Probe Mode: electronic convex, electronic linear.Probe element: 128 elements.
Standard probe：3.5MHz convex multi-frequency probe (Frequency conversion scope：2.0 / 2.5 / 3.5 / 5.0 MHz)
Optional probe：6.5MHz intra-vaginal frequency conversion probe. (frequency conversion scope：4.0 / 5.0 / 6.5 / 7.5 MHz)
Optional probe：7.5MHz frequency conversion probe. (frequency conversion scope：5.0 / 6.5 / 7.5 / 9.0 MHz)
Optional probe：5.0MHz micro-convex frequency conversion probe. (frequency conversion scope：3.5 / 4.5 / 5.0 / 5.5 MHz)
Optional probe：3.5MHz cardiology multi-frequency probe(Frequency conversion scope：2.0 / 2.5 / 3.5 / 5.0 MHz)
5. Scanning angle：convex probe 60°，intra-vaginal probe 130°.
6. 64 kinds body mark with probe direction.
7. Probe socket： 2 sockets, automatically identify the probe.
8. Full digital B mode ultrasound scanner.
9. Physical receiving channel: ≥32 channels beam former.
10. Resolution: horizontal≤2mm, vertical≤1mm.
11. Dead zone≤5mm（inspect report≤3mm）.
12. Maximum detective depth：≥17cm（test report actually≥19cm）.
13. Geometry precision：landscape orientation≤５％，lengthways≤５％（test report actually: landscape orientation≤４％，lengthways≤４％）.
14. Scan mode：B、2B、4B 、B/M、M .
15. Full view image 28 ranges depth adjustment.
16. Gain range：total gain continuous adjustment（0～127dB）.
17. Dynamic range：27～100dB, visible and adjustable.
18. Four changeable angles/width.
19. Gray scale： 256.
20. Image technology：full digital beam former technology，continuous dynamic focus, dynamic aperture.
21. Image storage: C:/ dick in host is 32MB, can save 100 images permanently even if electronic power is turned off.
22. Cine loop: 256.
23. TGC adjustment：8 stages.
24. Image processing：pre-process (continuous dynamic focus, dynamic aperture, dynamic filter）, post-process（4 grades gamma correction）、frame correlation, black/white reversal, left/right reversal, up/down reversal, edge enhancement, etc.
25. Image depth enhancement and local zoom function.
26. 30 frame/s.
27. Measurement and analyze function
General measurement: distance, circumference, area, volume, slope, heart rate and cycle.
Obstetric measurement and analyze ：BPD, CRL, GS, FL, HL, TAD, TBD, APBD,HC, AC, GA, EFW, FT, LV, THD, TCD, OFD, AFI, LMP, fetal growth curve（dingle frame、four frames）、OB report；
Cardio measurement and analysis: M routine measurement software package (depth, slope, heart rate, cycle), cardio measurement software package (left ventricle function, mitral valve, aorta, ejection period, cardiac muscle weight, cardio report, etc.
Gyn. measurement and analysis: uterus volume, endometrium thickness, ovary volume, superior ovarian follicle, uterine neck long dia, GYN report, etc.
Urological measurement and analysis: residual urine, volume of prostate, Urological report
28. Report: OB report, fetus growth curve，cardio report, Gyn report, Urological report
29. Backlight silica gel keyboard and photoelectricity track ball
30. Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.
31. USB-A socket for flash disk to store images directly (it can store both patient image and relative report. Support file management, disk management and software update.)
32. USB-B socket for transferring of the real time image (optional software of case report process center)
33. Output: PAL / NTSC
34. DICOM 3.0, software updated
35. Energy-saving
36. 8 kinds internal pseudo color，10’color LCD and bracket can be selected as optional parts.
37. Print output: video printer(optional parts), optional software of case report process center(work station)
